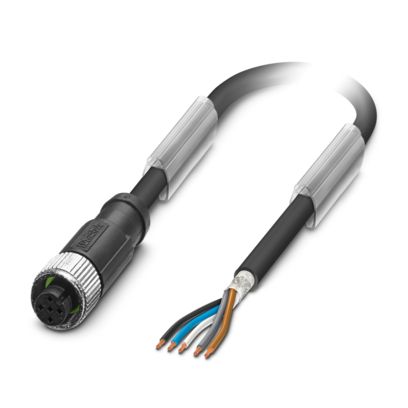

Sensor cable - 5-positions, PUR halogne-free, black-gray RAL 7021, shielded, free cable end, straight M12, coding A

• Product type: Sensor/actuator cable
• Application: Standard
• Number of positions: 5
• No. of cable outlets: 1
• Shielded: no
• Coding: A

• Flammability rating according to UL 94: HB
• Seal material: NBR
• Material of grip body: TPU, hardly inflammable, self-extinguishing
• Contact material: CuSn
• Contact surface material: Ni/Au
• Contact carrier material: TPU GF

• Material for screw connection: Zinc die-cast, nickel-plated

• Insulation resistance: ≥ 100 MΩ
• Nominal voltage UN: 48 V AC / 60 V DC

• Nominal current IN: 4 A

• Insertion/withdrawal cycles: ≥ 100

Tightening torque: 0.4 Nm (M12 connector)

Connection 1

• Type: free cable end

Connection 2

• Type: Socket straight M12
• Number of positions: 5
• Coding type: A

• Cable length: 1.5 m, 3 m, 5 m, or 10 m
• Cable weight: 33 kg/km
• UL AWM Style: 20549 / 10493 (80°C/300 V)
• Cable type: PUR halogen-free black [PUR]
• Conductor structure signal line: 42x 0.10 mm
• AWG signal line: 22
• Conductor cross section: 5 x 0.34 mm² (Signal line)
• Wire diameter incl. insulation: 1.27 mm ±0.05 mm
• External cable diameter: 4.55 mm ±0.15 mm
• Outer sheath, material: PUR
• External sheath, color: black-gray RAL 7021
• Conductor material: Bare Cu litz wires
• Material wire insulation: PP
• Single wire, color: brown, white, blue, black, green-yellow
• Thickness, insulation: ≥ 0.21 mm
• Thickness, outer sheath: approx. 0.50 mm
• Max. conductor resistance: ≤ 58 Ω/km (at  20 °C)
• Insulation resistance: ≥ 16 GΩ*km (at  20 °C)
• Nominal voltage, cable: ≤ 300 V
• Test voltage: ≥ 3000 V
• Minimum bending radius, fixed installation: 5 x D
• Minimum bending radius, flexible installation: 10 x D
• Smallest bending radius, fixed installation: 21 mm
• Smallest bending radius, movable installation: 42 mm
• Dynamic load capacity (bending): Max. bending cycles: 4000000, Bending radius: 50 mm, Traversing path: 10 m, Traversing rate: 3 m/s, Acceleration: 10 m/s²
• Halogen-free: in accordance with DIN VDE 0472 part 815
• Flame resistance: in accordance with UL 758/1581 FT2, DIN EN 60332-2-2 (20 s)
• Resistance to oil: in accordance with DIN EN 60811-2-1
• Other resistance: Highly resistant to acids, alkaline solutions and solvents, hydrolysis and microbe resistant, partly UV-resistant (in accordance with DIN EN ISO 4892-2-A), Low adhesion, abrasion-resistant
• Special properties: Flexible cable conduit capable, Silicone-free, Free of substances which would hinder coating with paint or varnish flexible
• Ambient temperature (operation): -40 °C ... 80 °C (cable, fixed installation), -25 °C ... 80 °C (Cable, flexible installation)

• Degree of protection: IP 65. IP67, IP68
• Ambient temperature (operation): -25 °C ... 90 °C (Plug / socket)

• Standard designation: M12 connector
• Standards/specifications: IEC 61072-2-101
