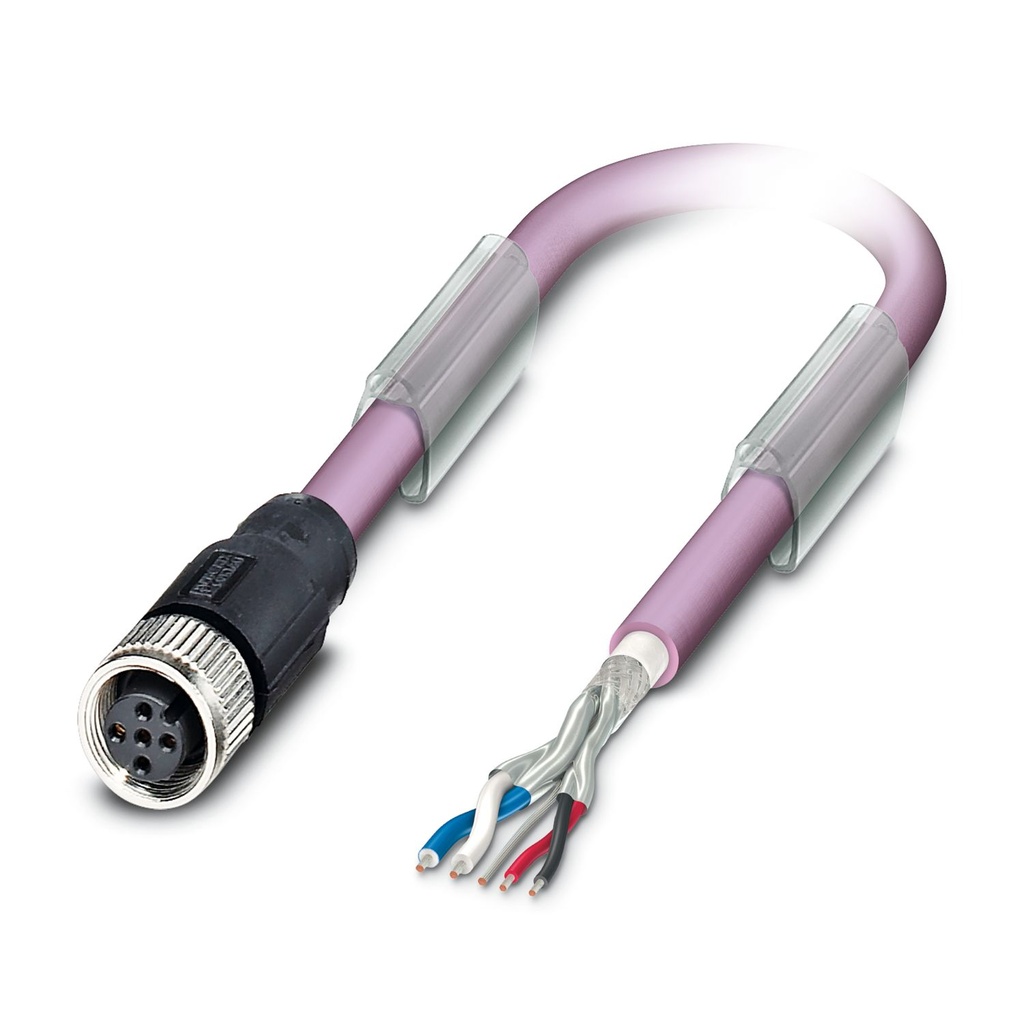

Bus system cable - Modbus, CANopen®, DeviceNet™, 5-position, PUR halogen-free, red lilac RAL 4001, shielded, free cable end, on Socket straight M12, coding: A, cable length: Free input (2 m ... 10.0 m)

(0 review)

Sensor/actuator cable, 5-position, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket straight M12, coding: A, cable length: 1.5 m, 3 m, 5m, or 10 m

M12 cable sale

46.88 €

(Tax excluded)

Cable Length

Technical Data
Downloads

Product properties

Product type: Data cable preassembled
Application: Standard
Number of positions: 5
No. of cable outlets: 1
Shielded: yes
Coding: A

Material specifications

Flammability rating according to UL 94: HB
Seal material: NBR
Material of grip body: TPU, hardly inflammable, self-extinguishing
Contact material: CuSn
Contact surface material: Ni/Au
Contact carrier material: TPU GF
Material for screw connection: Zinc die-cast, nickel-plated

Electrical properties

Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 48 V AC / 60 V DC
Nominal current IN: 4 A

Mechanical data

Insertion/withdrawal cycles: ≥ 100

Connection data

Tightening torque: 0.4 Nm (M12 connector)

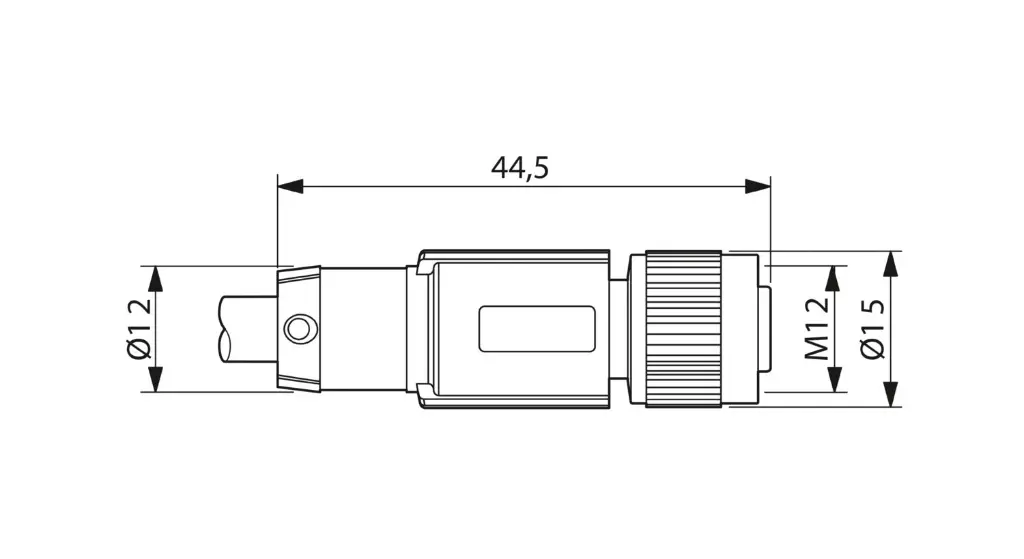

Connector

Connection 1

Type: free cable end

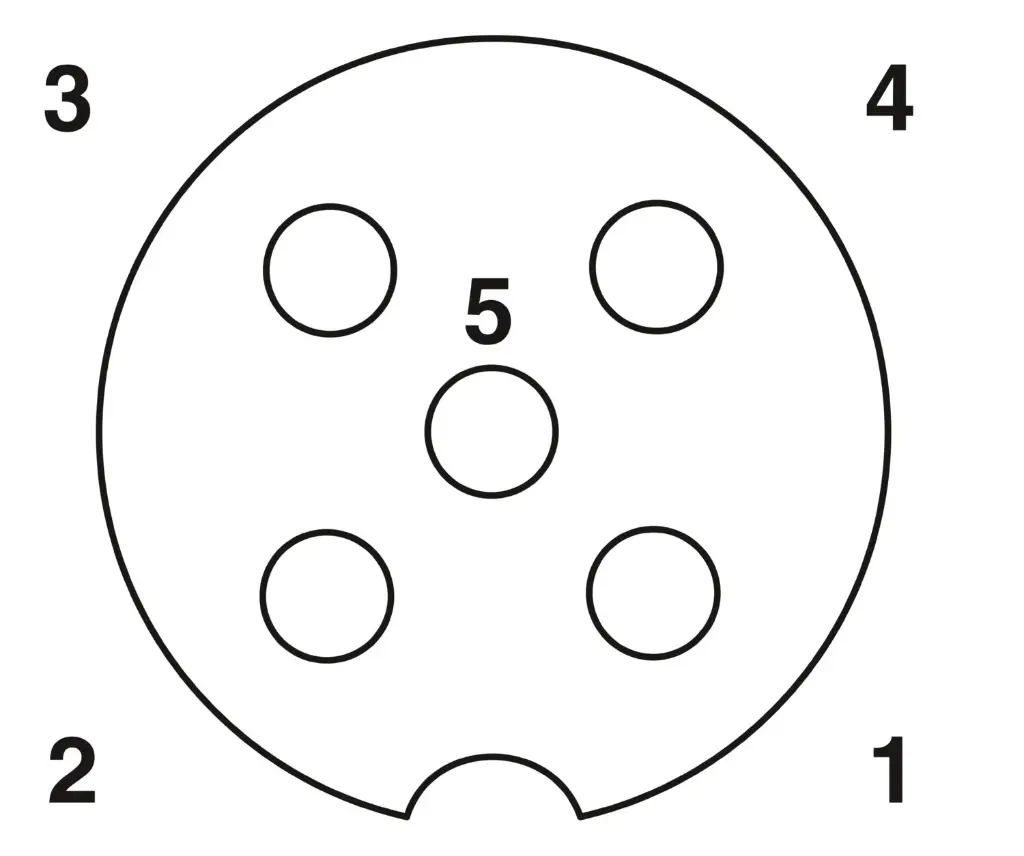

Connection 2

Type: Socket straight M12
Number of positions: 5
Coding type: A

Cable/line

Cable length: 2 m, 3 m, 5 m, or 10 m (contact us for other lengths)
Cable weight: 33 kg/km
UL AWM Style: 21198 (80°C/300 V)
Cable type: PUR halogen-free black [PUR]
Conductor structure signal line: 2xAWG24/19+2xAWG22/19
AWG signal line: 24, 22 (AWG power supply)
Conductor cross section: 2x 0.25 mm² (Data cable), 2x 0.34 mm² (Power supply), 1x 0.34 mm² (Drain wire)
Wire diameter incl. insulation: 1.95 mm ±0.05 mm (Data cable), 1.4 mm ±0.05 mm (Power supply)
External cable diameter: 6.70 mm ±0.3 mm
Outer sheath, material: PUR
External sheath, color: red lilac RAL 4001

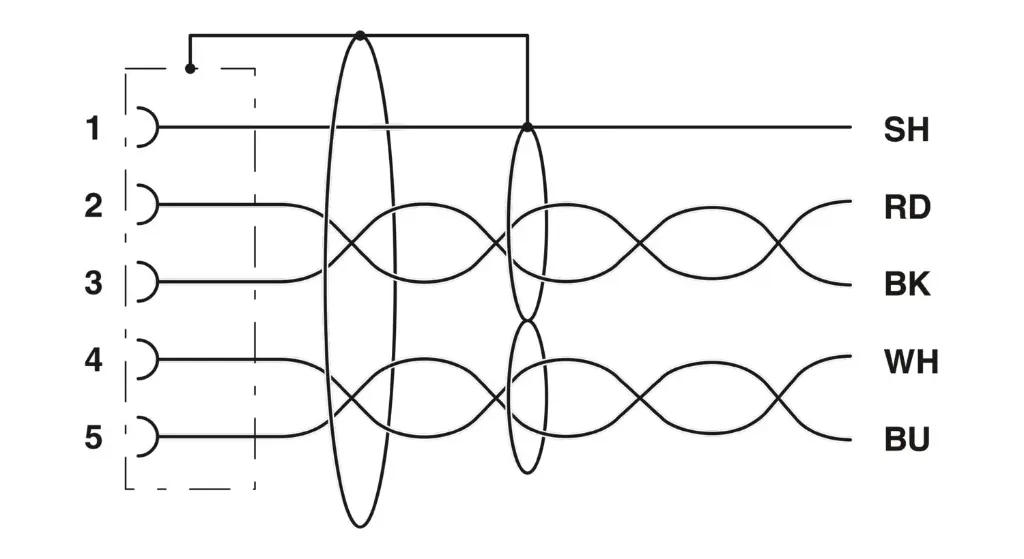

Conductor material: Tin-plated Cu litz wires
Material wire insulation: Foamed PE (Data cable), PE (Power supply)
Single wire, color: red-black, blue-white
Twisted pairs: 2 cores to the pair
Overall twist: 2 pairs around a drain wire in the center to the core
Optical shield covering: 80 %
Insulation resistance: ≥ 5 GΩ*km (Data cable), ≥ 5 GΩ*km (Power supply)
Nominal voltage, cable: ≤ 300 V (Peak value, not for high-power applications)
Test voltage: 2000 V (50 Hz, 1 min.)
Minimum bending radius, fixed installation: 4 x D
Minimum bending radius, flexible installation: 8 x D
Dynamic load capacity (bending): Max. bending cycles: 5000000, Bending radius: 70 mm, Bending radius: 15 x D, Traversing path: 4.5 m, Traversing rate: 3 m/s, Acceleration: 3 m/s², Ambient temperature: -20 °C ... 60 °C
Halogen-free: in accordance with DIN VDE 0472 part 815
Flame resistance: UL 1581, Section 1060 and UL 2556, Section 9.3 (FT1), UL 1581, Section 1100 and UL 2556, Section 9.1 (HFT/FT2), IEC 60332-1-2, in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01)
Special properties: Flexible cable conduit capable
Ambient temperature (operation): -40 °C ... 80 °C (cable, fixed installation), -30 °C ... 70 °C (Cable, flexible installation), -20 °C ... 60 °C (for installation)

Environmental and real-lilfe conditions

Degree of protection: IP 65, IP67
Ambient temperature (operation): -25 °C ... 90 °C (Plug / socket)

Standards and regulations

Standard designation: M12 connector
Standards/specifications: IEC 61072-2-101

Commercial data

Packing unit: 1 pc
Minimum order quantity: 1 pc
Customs tariff number: 85444290
Country of origin: PL

Manufacturer declarations

EU Declaration of Conformity: 001198937_03_DoC_EU.pdf

Documentation of the ecological footprint: 1668108_11_Product Environmental Footprint.pdf
